FOCUS velikosti rámů

<<< Velikosti rámů

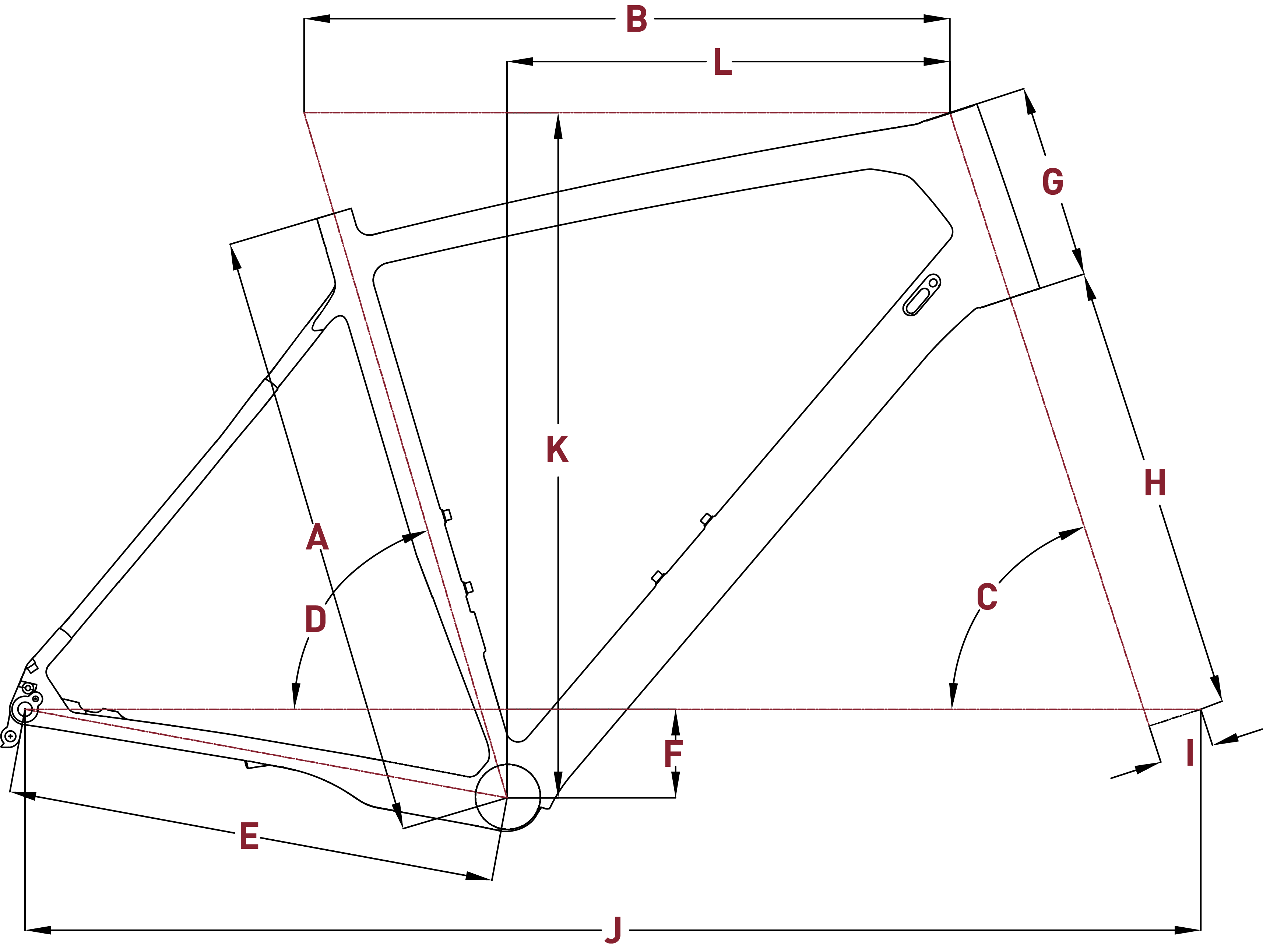

S M L XL   SIZE 40 44 47 50   A SIZE (MM) 400 440 470 500   B EFFECTIVE TOP TUBE (MM) 584 603 627 651   C HEAD TUBE ANGLE (°) 66.8 66.8 66.8 66,8   D EFFECTIVE SEAT TUBE ANGLE (°) 74.5 74.5 74.5 74,5   E CHAINSTAY (MM) 455 455 455 455   F BB DROP (MM) 25 25 25 25   G HEAD TUBE LENGTH (MM) 115 130 147 163   H FORK LENGTH (MM) 540 540 540 540   I FORK OFFSET (MM) 51 51 51 51   J WHEELBASE (MM) 1175.4 1196.3 1223 1249,3   K STACK (MM) 609.7 623.5 639.1 653,8   L REACH (MM) 415 430 450 470
